Small Diascope (S-508)
Small Diascope (S-508)
After developing the finest quality diamond analysing and sorting machines for the diamond and gemstone industry, Vision 360 has introduced the most convenient and portable product in our range of products – Small Diascope.
This sophisticated, competent and high quality instrument is the newest inclusion to our products range. This portable instrument is not only portable but is also developed to resolve two major unique problems. One of the best features of small diascope that it is handy that can be used at your convenience. At times, it is difficult to analyse small diamonds on standard instrument but one can easily analyse and sort small diamond in this instrument.
Effortless And Unfussy Sorting System
For years, we have been following the trading method for inspecting and sorting diamonds. With the introduction of this tool, we assure to provide a better option for the inspection and clarity of the diamonds. With a 3000K and 6000K diffuse lighting system, it becomes easy for grading the diamonds. The 6 bean tray makes the sorting effortless and unfussy.
Also, using the traditional method for a long time may develop neck and spinal issues. When compared to the traditional method of inspecting and sorting, this newest method of sorting diamonds increases the productivity of the diamond artisans. Likewise, it also boosts the accuracy of the diamonds. Designed ergonomically, it is best for clarity and easy grading of the diamond.
Manufactured and finished with finest quality technology, this instrument makes inspecting and sorting easy and effortless and is also cost-effective. This adaptable and advantageous machine is user friendly and economical.
Optics
When it is about a microscope, lenses are one of the most essential parts of it. At Vision 360, as we never settle for anything else than the best quality and consistency, we develop instruments made with the highest quality and state-of-the-art technology. And for this, we have been associated with the most leading optic lens manufacturer Zeiss. With an association of more than a decade with this forerunner brand, for us, it is these attributes that always can make success. And therefore, we strive to give our best to clients. We develop instruments made with the highest quality and state-of-the-art technology.
We have always been a step ahead when it's all about technology. With the introduction of Greenough-type stereo microscope by Zeiss, Vision 360 procured it as we believe in walking with the technology. The Greenough-type stereo microscope gives you crisp 3D impressions, adaptable object illumination, and effortless sharing of images whenever one wishes. This microscope is useful for easy specimen handling and large to view the field. Solid, maintainable and easy to use, this specimen is perfect for the analysis of diamond and gemstone.
Important Features
EASY SORTING
To sort the single diamond or to check the clarity grades of the diamonds, the add-on modules of the advanced solitaire microscope are included in it.
3000K TO 6500K DIFFUSE LIGHT SYSTEM
One of the prominent features of this ergonomically designed tool has the user friendly lighting system with the help of which artisans can personalize the lighting system. They can set the system between 3000K and 6500K diffuse light system.
ANALOGUE CONTROL SWITCHING
Easy to use for the artisans, this tool has analogue control switching system. Also, this system requires less maintenance compared to other tools.
INCREASING PRODUCTIVITY, LESS EYE STRAIN
With the help of a vacuum stick, the clarity of diamond between 3000K to 6500K can be produced; increasing the productivity of the analyst and lessening the strain on eyes.
USER FRIENDLY
This ergonomically designed machine is also user friendly and portable.
PERFECT ACCURACY
As it is easily transportable, the buyers can carry it with them anywhere to check the clarity and accuracy of the diamonds.
LESS STRAIN ON EYES
The defuse light system comprised in this system helps in the effective examination of the diamonds while inspecting and sorting. One can inspect the diamonds with more clarity as the diffuse lights are proportionally distributed. Furthermore,it also reduces the strain on the eyes of diamond artisans.

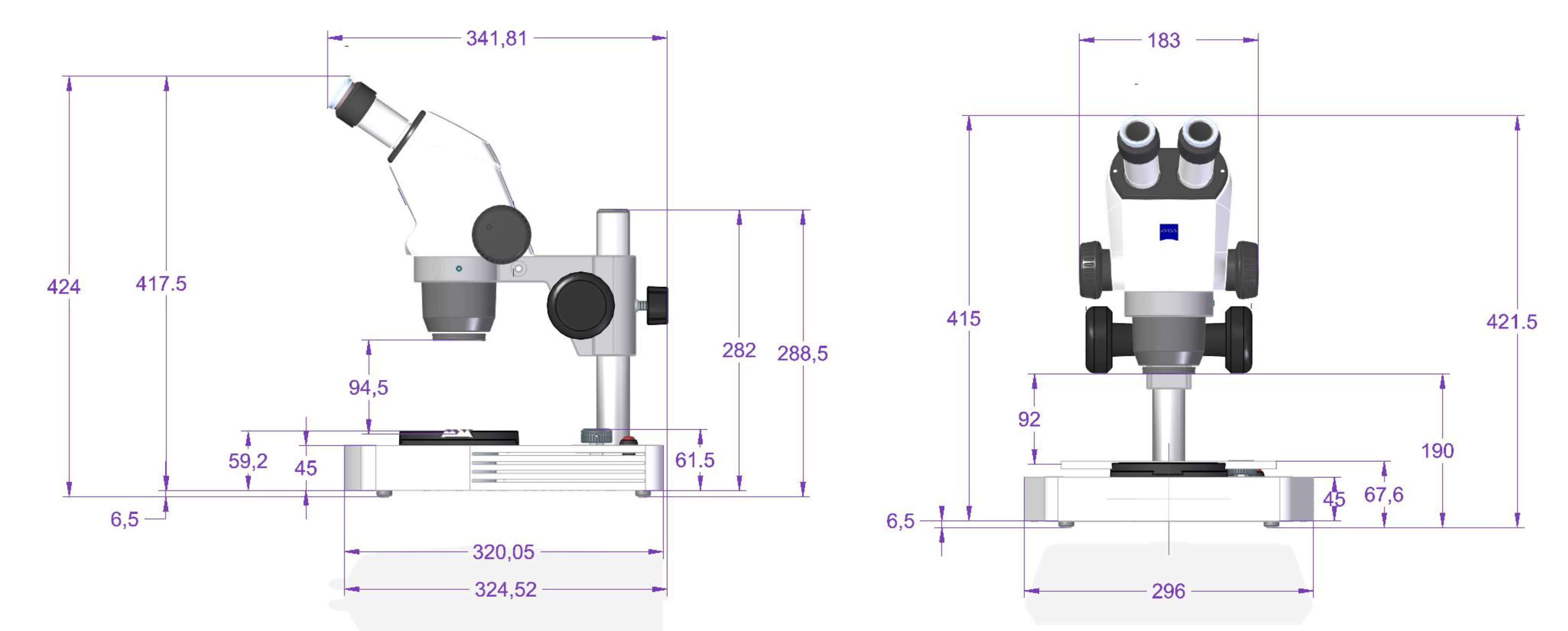

Technical Specification
Lens Comparison Table
Inter Comparison of Carl Zeiss Stereo Microscopes
| Specification | Zeiss | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stemi 305 | Stemi 508 | Discovery V8 | Discovery V20 | ||||||||||
| Optical Concept | Greenough | Greenough | Parallel Optics | Parallel Optics | |||||||||
| Zoom Range | 5:1 | 8:1 | 8:1 | 20:1 | |||||||||
| Zoom Operation | Manual | Manual | Manual | Motorized | |||||||||
| Total Magnification with 1x Objectives and 10x eyepieces | 8x to 40x | 6.3x to 50x | 10x to 80x | 7.5x to 150x | |||||||||
| Resolution(lp/mm) | 200 | 220 | 346 | 796 | |||||||||
| Working distance with 1x Objective | 110mm | 92mm | 81mm with Plan S1x Objective | 81mm with Plan Apo S0.63x Objective | |||||||||
| Binocular tubes | Integrated | Integrated | Various Binocular/trinocular tubes are available | 81mm with Plan Apo S0.63x Objective | |||||||||
| Interpupillary Distance | 55-75mm | 55-75mm | 55-75mm | 55-75mm | |||||||||
| Eyepieces | 10X | 10X | 10X,16X,25X | 10X,16X,25X | |||||||||
| Field of View Number | N/A | 20 | 21,23,16,10 | 21,23,16,10 | |||||||||
| Object field(mm) | 28.8...5 | 36.8...4.6 | 23.0...2.9 | 23.0...2.9 | |||||||||
| Accessories: | |||||||||||||
| Camera | Yes | Yes | Yes | Yes | |||||||||
| Fluorescence attachment | No | No | Yes | Yes | |||||||||
Inter Comparison of Carl Zeiss Stereo Microscopes
| General Information(305) | General Information(508) | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operation Concept | Stereo microscope,Greenough design with 5:1 zoom range | Stereo microscope,Greenough design with 8:1 zoom range | |||||||||||||||
| Main Component | Lens body,Stand and Illumination | Lens body,Stand and Illumination | |||||||||||||||
| Lens body | Stemi 305(binocular, incl.eyepieces 10x/23 Br. foc),Stemi 305 doc(Phototube, incl.eyepieces 10x/23 Br. foc) | Stemi 508(binocular, incl.eyepieces 10x/23 Br. foc),Stemi 508 doc(Phototube, incl.eyepieces 10x/23 Br. foc) | |||||||||||||||
| Stands | Ergonomic design with adjustable in height and inclination for longer use | Ergonomic design with adjustable in height and inclination for longer use | |||||||||||||||
| Input Power Supply | 110 - 240 Volt AC,60/50 Hz | 110 - 240 Volt AC,60/50 Hz | |||||||||||||||
| Optical data of the Basic and Optional System | |||||||||||||||||
| Magnification Range | 8x to 40x with basic version(10x eyepieces,no front optics)all magnifications from 4x to 200x (interchanable optics) | 6.3x to 50x with basic version(10x eyepieces,no front optics)all magnifications from 2x to 250x (interchanable optics) | |||||||||||||||
| Maximum Resolution | 200lp/mm basic version:up to 400lp/mm with interchanable optics | 225lp/mm basic version:up to 450lp/mm with interchanable optics | |||||||||||||||
| Maximum object field | 29 mm basic version;up to 58 mm using interchanable | 36 mm basic version;up to 122 mm using interchanable | |||||||||||||||
| Working distance | 110 mm basic version;up to 58 mm using interchanable optics | 92 mm basic version;up to 122 mm using interchanable optics | |||||||||||||||
| Stand | |||||||||||||||||
| Body | Light weighted aluminium body | ||||||||||||||||
| Focusing | Manual coarse adjustment with Tilting arm | ||||||||||||||||
| Illumination | |||||||||||||||||
| Dark-field illumination | Light weighted aluminium body | ||||||||||||||||
General Information
| Operation Concept | Stereo microscope,Greenough design with 8:1 zoom range | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Main Component | Lens body,Stand and Illumination | ||||||||||
| Lens body | Stemi 305(binocular, incl.eyepieces 10x/23 Br. foc),Stemi 305 doc(Phototube, incl.eyepieces 10x/23 Br. foc) | ||||||||||
| Stands | Ergonomic design with adjustable in height and inclination for longer use | ||||||||||
| Illumination | Three in one Option is available,which are Dark-field(Y&W),Ring type(W) and Combination of both (Y + W) with standard daylight | ||||||||||
| Input Power Supply | 110 - 230 Volt AC,60/50 Hz | ||||||||||
| Optical data of the Basic and Optional System | |||||||||||
| Magnification Range | 6.3x to 50x with basic version(10x eyepieces,no front optics)all magnifications from 2x to 250x (interchanable optics) | ||||||||||
| Maximum Resolution | 225lp/mm basic version:up to 450lp/mm with interchanable optics | ||||||||||
| Maximum object field | 36 mm basic version;up to 122 mm using interchanable | ||||||||||
| Working distance | 92 mm basic version;up to 122 mm using interchanable optics | ||||||||||
| Stand | |||||||||||
| Body | Aluminium and Brass body with anodising coating | ||||||||||
| Focusing | Manual coarse adjustment with Tilting arm | ||||||||||
| Illumination | |||||||||||
| Dark-Field illumination | LED based Lighting to see diamond structures bright against a dark background | ||||||||||
| Ring illumination | shadow-free bright LEDs in ring illumination for stereo effect. | ||||||||||
| Combine lighting | Combination of LED based Dark-Field and bright LEDs in ring illuminator | ||||||||||
| Overhead Day Light | Look at colored objects and giving soft light to observe glary or shining objects | ||||||||||
| Overhead Fluorescence | Observe the fluorescence of the diamond in the relief contrast | ||||||||||
| Polarization Add-On | Study birefringent objects,detect stress in Rough and Polished Diamonds | ||||||||||
