Jewellery Microscope (S-508)
Jewellery Microscope (S-508)
In the jewellery industry, a microscope plays a noteworthy role as a tool. One of the widely used instruments, there also arises the need for the Quality Check Microscope Stand; which is a prerequisite for the analysis of diamond that includes clarity, colour, finish grade, the fluorescence of diamond, to name a few. When the analyst is micro-setting the ring, this stand helps with the clarity and finishing which is difficult to achieve when done manually. Moreover, the diamond being sturd will not be tilted when it is set with the help of this stand. With ergonomic design, the Vision 360s microscope stand is user-friendly and can assure to cater distinct quality products. Equipped with lenses from the leader of lens manufacturers in the world, Zeiss, it is not only comfortable to use but also helps in increasing the explicit productivity of a person. Apart from these, their lenses are long-lasting than any other lenses which turn futile in a short period. Made with the option of giving 360-degree service, this stand reassures the quality of outcome we receive a er the analysis.
Product
Qc Stand
Quality is one of the essentialities while checking the diamond in the microscope. A QC stand is introduced to inspect the fine jewellery & to check the diamond is fixed appropriately. It is usually used for large or flat objects like a neckpiece.
Arm Stand
The arm stand is used to check the sturdiness of the diamond, detection of NOx and pressed by the analyst while zooming into it. The arm Stand is primarily used when manufacturing the diamond or giving the finishing touch to it.
Composition
Direct Mount
Composed with features of both the QC stand and arm stand, the manufacturing bench can be fixed on any kind of table and it can be used easily. It will remain steady in the place fixed.

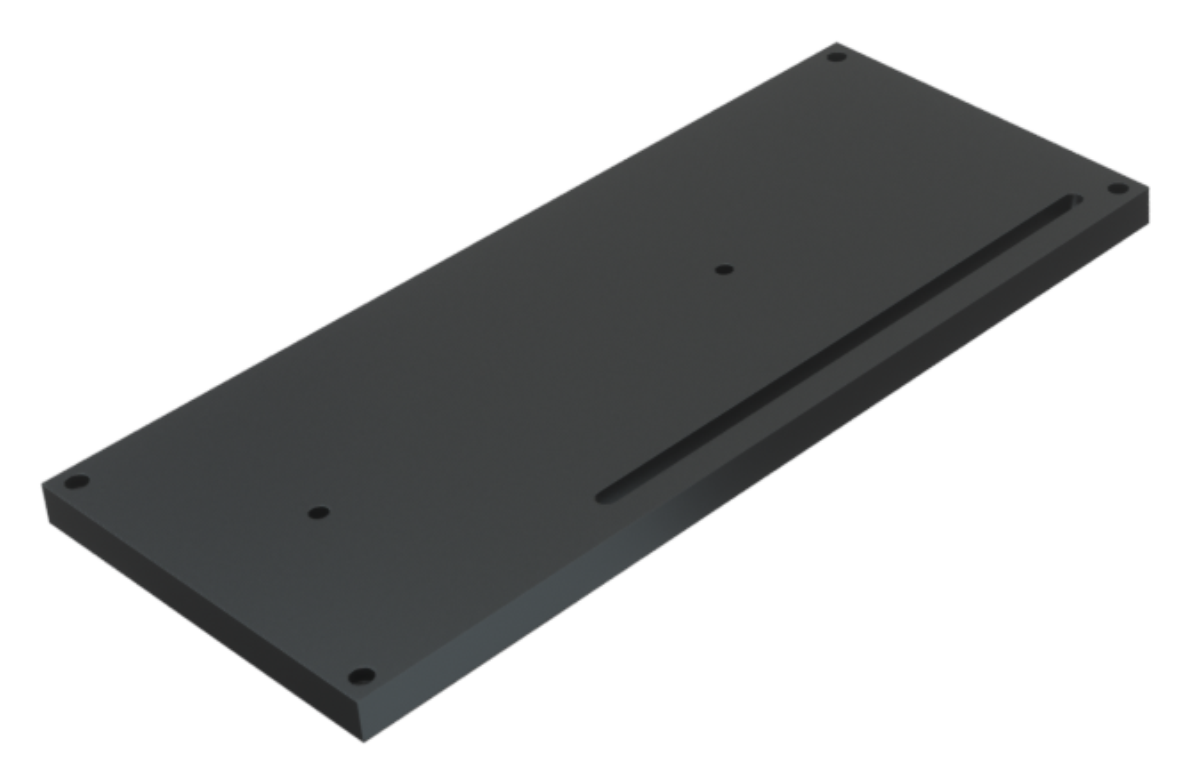

Stand Base Mount
For a comfortable & easy working experience,a stand-based mount is one of the best choicesas it is available with a plate. One can convert any table into a workplace with this stand as it has mobility and is convertible.

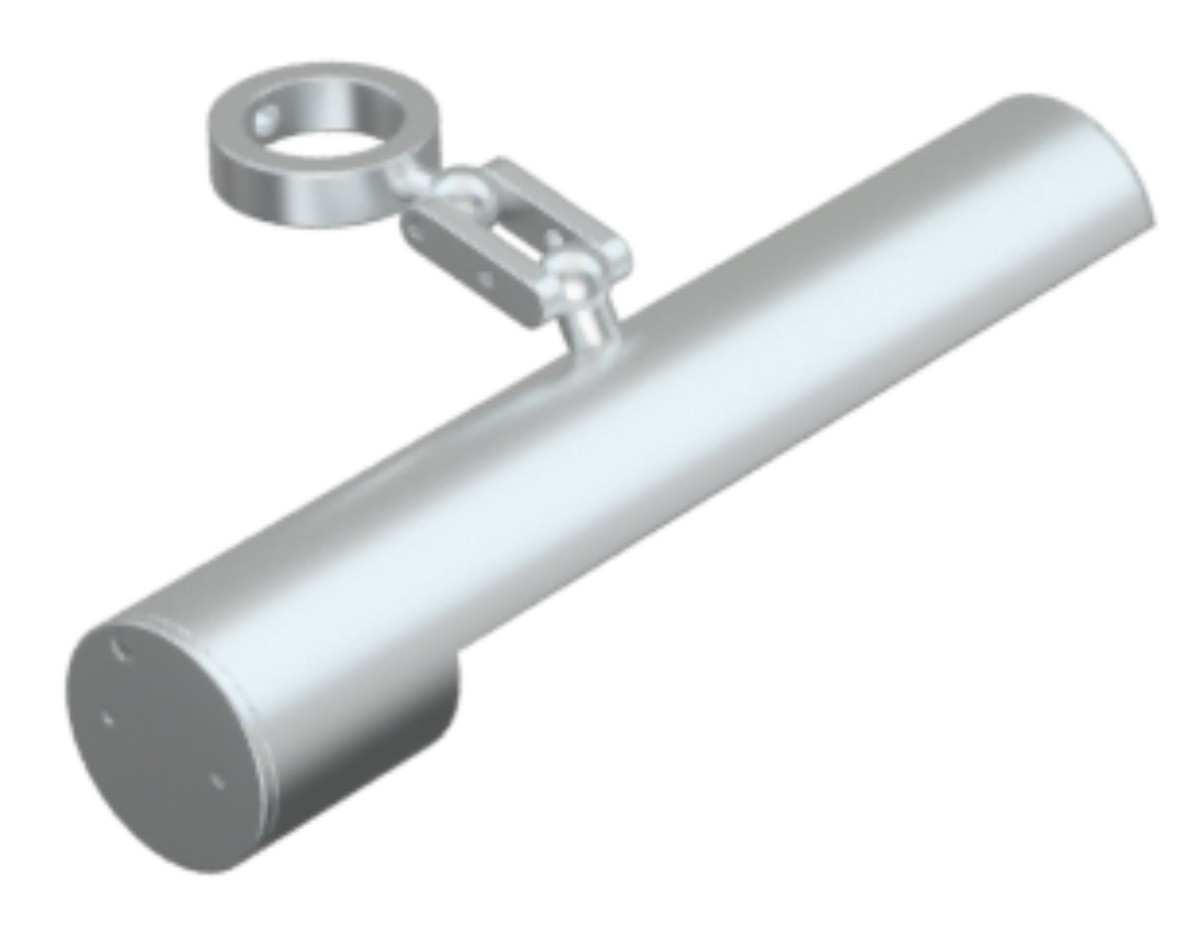

Filing Stand
For those perfect perspective views, while sawing or filing, one needs to adjust the positioning of the microscope accordingly. Filing stand helps one get the perspective view without straining the body and posture.
Stand Base Mount
One of the substantial pieces of equipment in the diamond quality check stand, the engraving ball with the slide-lock system makes reposition of things easy and quick while analyzing the product.

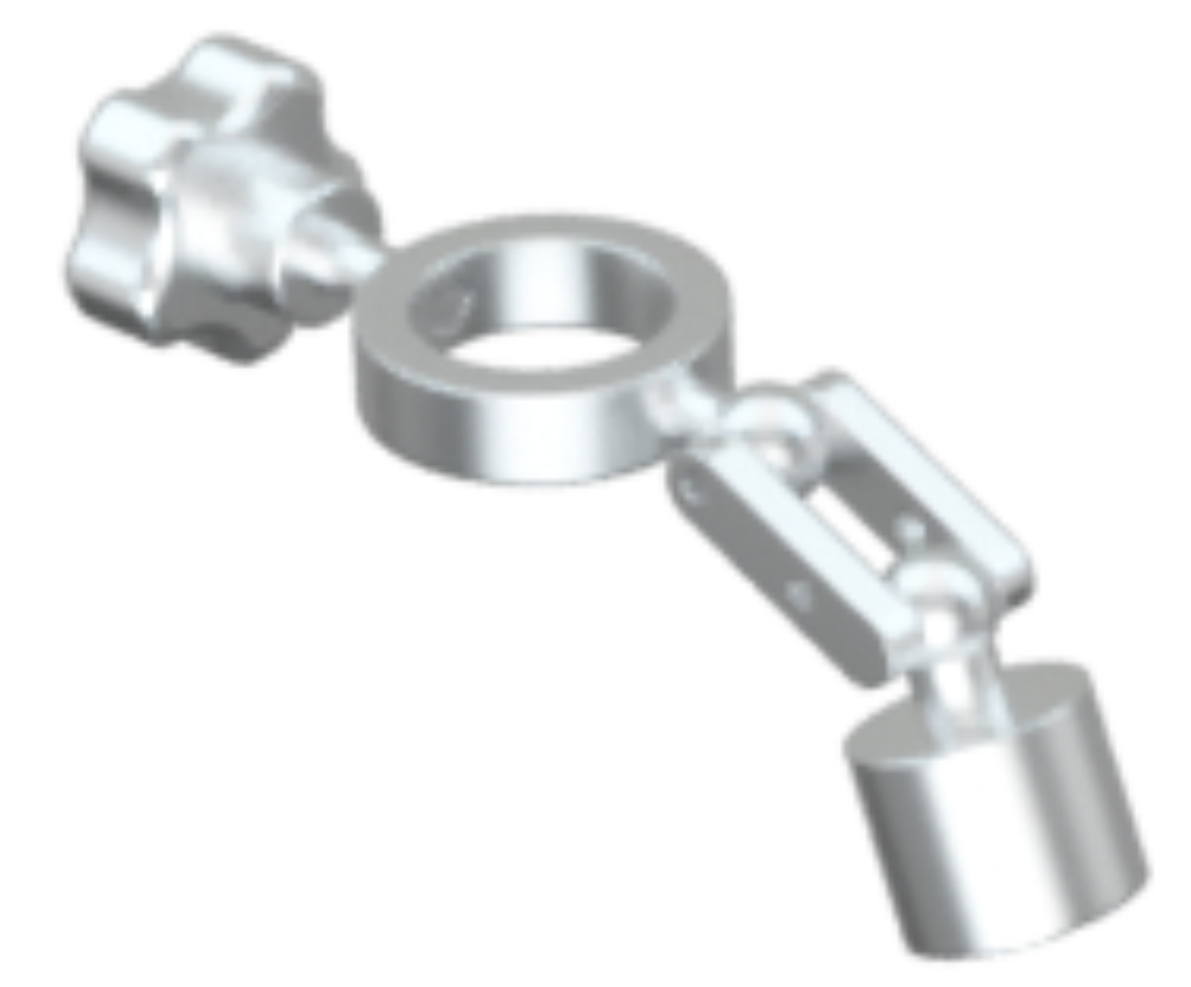

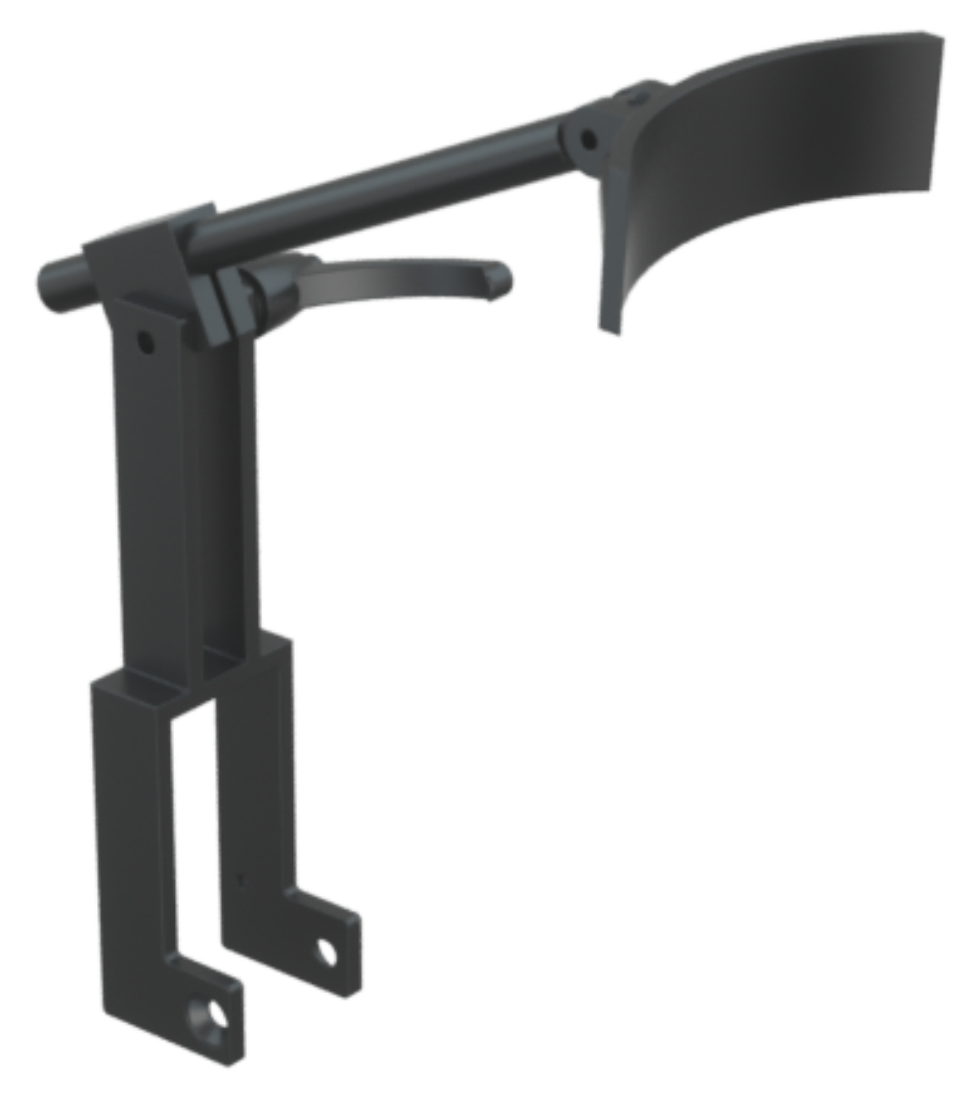

Head Rest Mount Stand
The analysts have to work continuously 8-10 hours which is exhausting & resome. With the help of a headrest mount stand, one can rest the head on the arc which will change the posture of the body; making it more relaxing.
Illumination Option
Spot Light
The lighting system introduced directly on the specimen increases the accuracy of the result. One can configure a spotlight while quality checking.
Diffusive Light
As spotlight, diffusive light system helps to increase the result of accuracy while manufacturing or filing the specimen. This system is also configurable.
Targeted Drive Option

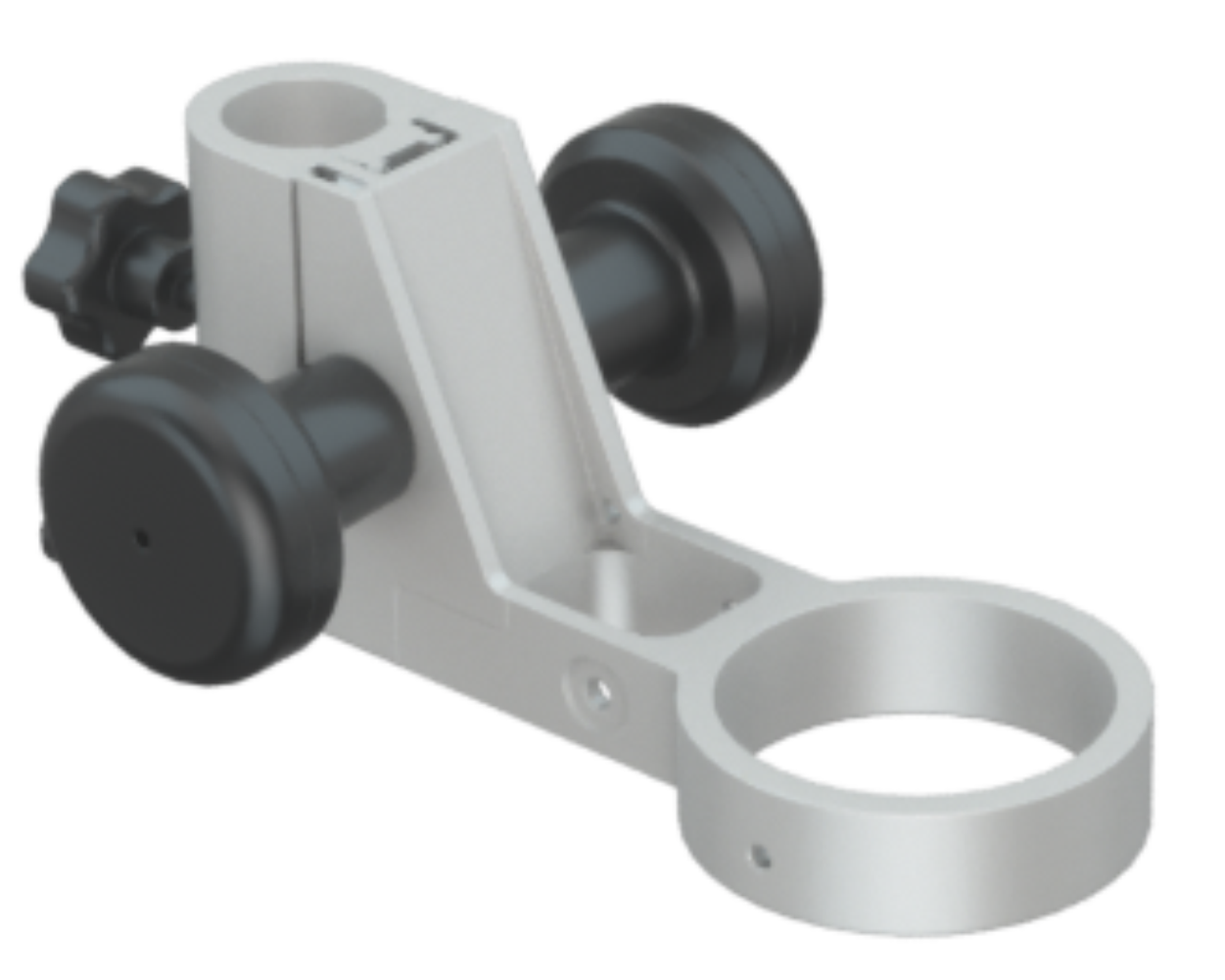

German Fine Tuning
Configured with German-made lenses, one can fine-tune the focus on the specimen; a fine-tuned system which is made from the world-famous lens manufacturer Zeiss.
Indian Fine Tuning
There is also Indian fine tuning system which is manufactured in India. As this too can be configured into this system, one can choose as per the requirement.
Optics
When it is about a microscope, lenses are one of the most essential parts of it. At Vision 360, as we never settle for anything else than the best quality and consistency, we develop instruments made with the highest quality and state-of-the-art technology. And for this, we have been associated with the most leading optic lens manufacturer Zeiss. With an association of more than a decade with this forerunner brand, for us, it is these a ributes that always can make success. And therefore, we strive to give our best to clients. We develop instruments made with the highest quality and state-of-the-art technology.
We have always been a step ahead when it's all about technology. With the introduction of Greenough-type stereo microscope by Zeiss, Vision 360 procured it as we believe in walking with the technology. The Greenough-type stereo microscope gives you crisp 3D impressions, adaptable object illumination, and effortless sharing of images whenever one wishes. This microscope is useful for easy specimen handling and large to view the field. Solid, maintainable and easy to use, this specimen is perfect for the analysis of diamond and gemstone.
Important Features
Sleek & Yielding Microscope Stand
A robust and dynamic instrument microscope stands help in easy inspection of the diamond. This high-powered stand makes it easy for positioning. The mounting base and ergonomic handles help to smooth inspection; as a result, the framework of the diamond can be easily implied. It gives the best optical viewing experience to the analyst.
Ergonomically Designed Stone Setter
While setting the diamond, it is essen al to have a perfect pair of stone setting instruments for a smooth and professionalsetting. Moreover, it gives you a professional finish to the jewellery set. Designed ergonomically and pertinently, this stone setting tool package helps to complete the work clean, better, and faster. It is easy to keep under the microscope which can be fine-tuned even on the minute workpiece.

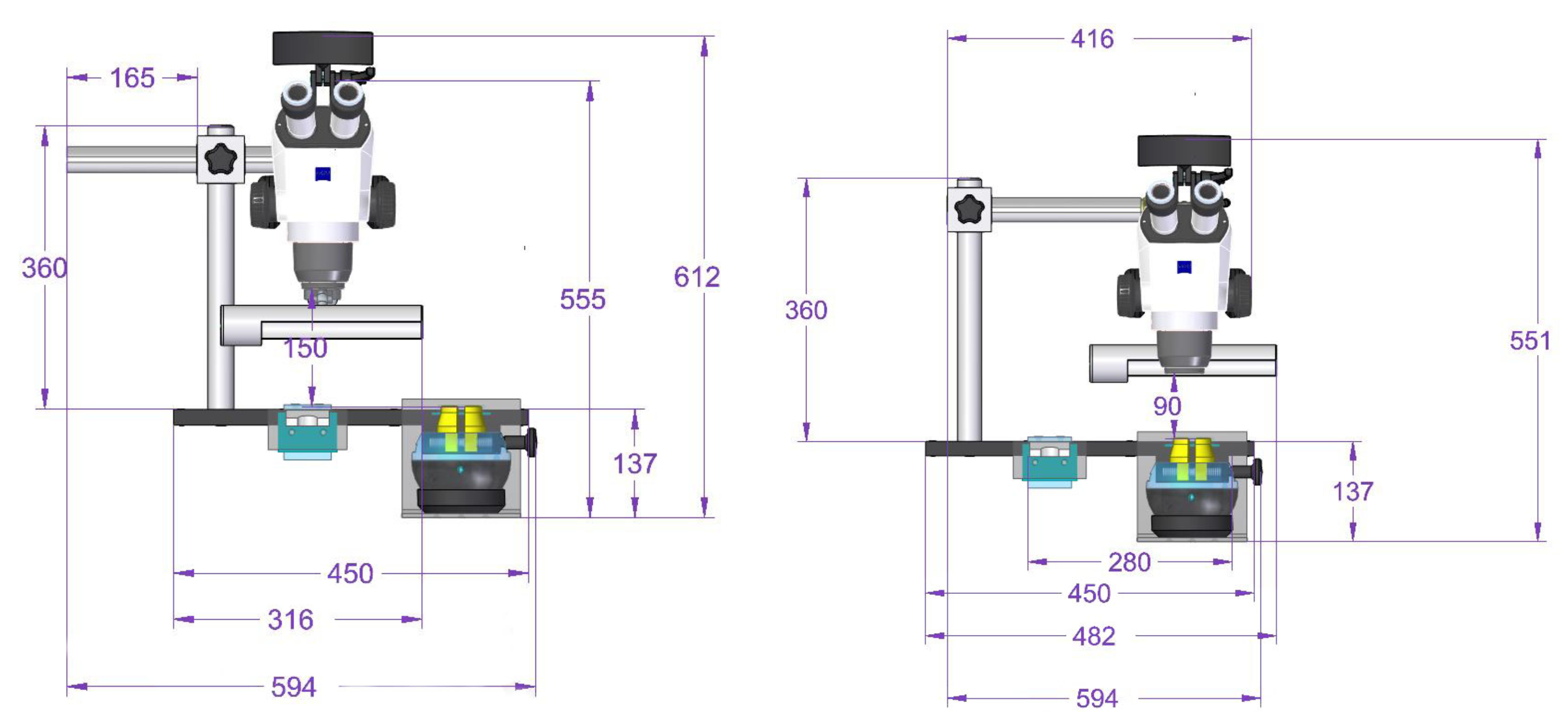

Appropriate & Adjusting Bench Height
While quality checking the diamond, one of the quintessential needs is an appropriate bench as the sitting position completely depends on the height of the benchwork. While stone setting, the high benchwork may elevate uneasiness and apprehension as one may develop neck pain or headache and apparently which may lead to many health issues. The proper and ergonomically designed bench will make working more smooth as a result one can concentrate more on work, quicken the quality check and therefore, increase productivity
Stable And Steady Microscope Stand
While quality checking the diamond, it is a prerequisite to have a microscope stand that can be placed and adjusted according to the need of the analyst. The sleek and slender stand is ergonomically designed to give perfect positioning, comfortable and convenient handles, and steady holders that help to ease the work; giving the best experience.

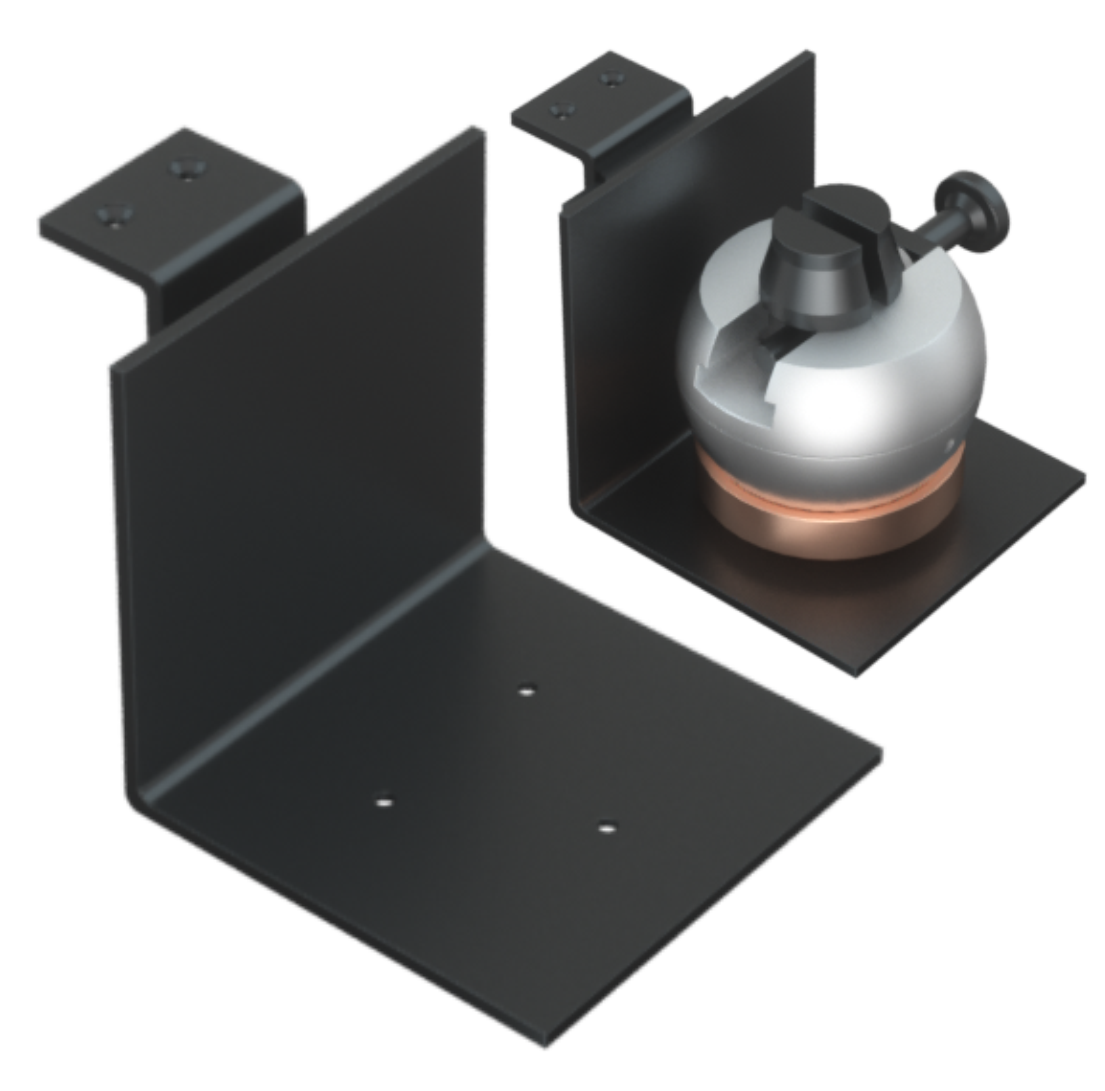

Engraving Ball With Slide Lock System
One of the substantial pieces of equipment in the diamond quality check stand, the engraving ball stand with the slide-lock system makes reposition easy and quick while analyzing the product. It is used in manufacturing diamond sturdy as well as while quality check. The engraving ball stand can be used as per the requirement of the analyst as it is removable. Furthermore, as it has the maneuverability, the analyst can place it from one place to another. This can be used in stand base mount as well as direct mount. The slide lock is one of the most essen al systems while using the microscope for the sturdy and fixed position while checking.
Technical Specification
Lens Comparison Table
Inter Comparison of Carl Zeiss Stereo Microscopes
| Specification | Zeiss | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stemi 305 | Stemi 508 | Discovery V8 | Discovery V20 | ||||||||||
| Optical Concept | Greenough | Greenough | Parallel Optics | Parallel Optics | |||||||||
| Zoom Range | 5:1 | 8:1 | 8:1 | 20:1 | |||||||||
| Zoom Operation | Manual | Manual | Manual | Motorized | |||||||||
| Total Magnification with 1x Objectives and 10x eyepieces | 8x to 40x | 6.3x to 50x | 10x to 80x | 7.5x to 150x | |||||||||
| Resolution(lp/mm) | 200 | 220 | 346 | 796 | |||||||||
| Working distance with 1x Objective | 110mm | 92mm | 81mm with Plan S1x Objective | 81mm with Plan Apo S0.63x Objective | |||||||||
| Binocular tubes | Integrated | Integrated | Various Binocular/trinocular tubes are available | 81mm with Plan Apo S0.63x Objective | |||||||||
| Interpupillary Distance | 55-75mm | 55-75mm | 55-75mm | 55-75mm | |||||||||
| Eyepieces | 10X | 10X | 10X,16X,25X | 10X,16X,25X | |||||||||
| Field of View Number | N/A | 20 | 21,23,16,10 | 21,23,16,10 | |||||||||
| Object field(mm) | 28.8...5 | 36.8...4.6 | 23.0...2.9 | 23.0...2.9 | |||||||||
| Accessories: | |||||||||||||
| Camera | Yes | Yes | Yes | Yes | |||||||||
| Fluorescence attachment | No | No | Yes | Yes | |||||||||
Inter Comparison of Carl Zeiss Stereo Microscopes
| General Information(305) | General Information(508) | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operation Concept | Stereo microscope,Greenough design with 5:1 zoom range | Stereo microscope,Greenough design with 8:1 zoom range | |||||||||||||||
| Main Component | Lens body,Stand and Illumination | Lens body,Stand and Illumination | |||||||||||||||
| Lens body | Stemi 305(binocular, incl.eyepieces 10x/23 Br. foc),Stemi 305 doc(Phototube, incl.eyepieces 10x/23 Br. foc) | Stemi 508(binocular, incl.eyepieces 10x/23 Br. foc),Stemi 508 doc(Phototube, incl.eyepieces 10x/23 Br. foc) | |||||||||||||||
| Stands | Ergonomic design with adjustable in height and inclination for longer use | Ergonomic design with adjustable in height and inclination for longer use | |||||||||||||||
| Input Power Supply | 110 - 240 Volt AC,60/50 Hz | 110 - 240 Volt AC,60/50 Hz | |||||||||||||||
| Optical data of the Basic and Optional System | |||||||||||||||||
| Magnification Range | 8x to 40x with basic version(10x eyepieces,no front optics)all magnifications from 4x to 200x (interchanable optics) | 6.3x to 50x with basic version(10x eyepieces,no front optics)all magnifications from 2x to 250x (interchanable optics) | |||||||||||||||
| Maximum Resolution | 200lp/mm basic version:up to 400lp/mm with interchanable optics | 225lp/mm basic version:up to 450lp/mm with interchanable optics | |||||||||||||||
| Maximum object field | 29 mm basic version;up to 58 mm using interchanable | 36 mm basic version;up to 122 mm using interchanable | |||||||||||||||
| Working distance | 110 mm basic version;up to 58 mm using interchanable optics | 92 mm basic version;up to 122 mm using interchanable optics | |||||||||||||||
| Stand | |||||||||||||||||
| Body | Light weighted aluminium body | ||||||||||||||||
| Focusing | Manual coarse adjustment with Tilting arm | ||||||||||||||||
| Illumination | |||||||||||||||||
| Dark-field illumination | Light weighted aluminium body | ||||||||||||||||
General Information
| Operation Concept | Stereo microscope,Greenough design with 8:1 zoom range | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Main Component | Lens body,Stand and Illumination | ||||||||||
| Lens body | Stemi 305(binocular, incl.eyepieces 10x/23 Br. foc),Stemi 305 doc(Phototube, incl.eyepieces 10x/23 Br. foc) | ||||||||||
| Stands | Ergonomic design with adjustable in height and inclination for longer use | ||||||||||
| Illumination | Three in one Option is available,which are Dark-field(Y&W),Ring type(W) and Combination of both (Y + W) with standard daylight | ||||||||||
| Input Power Supply | 110 - 230 Volt AC,60/50 Hz | ||||||||||
| Optical data of the Basic and Optional System | |||||||||||
| Magnification Range | 6.3x to 50x with basic version(10x eyepieces,no front optics)all magnifications from 2x to 250x (interchanable optics) | ||||||||||
| Maximum Resolution | 225lp/mm basic version:up to 450lp/mm with interchanable optics | ||||||||||
| Maximum object field | 36 mm basic version;up to 122 mm using interchanable | ||||||||||
| Working distance | 92 mm basic version;up to 122 mm using interchanable optics | ||||||||||
| Stand | |||||||||||
| Body | Aluminium and Brass body with anodising coating | ||||||||||
| Focusing | Manual coarse adjustment with Tilting arm | ||||||||||
| Illumination | |||||||||||
| Dark-Field illumination | LED based Lighting to see diamond structures bright against a dark background | ||||||||||
| Ring illumination | shadow-free bright LEDs in ring illumination for stereo effect. | ||||||||||
| Combine lighting | Combination of LED based Dark-Field and bright LEDs in ring illuminator | ||||||||||
| Overhead Day Light | Look at colored objects and giving soft light to observe glary or shining objects | ||||||||||
| Overhead Fluorescence | Observe the fluorescence of the diamond in the relief contrast | ||||||||||
| Polarization Add-On | Study birefringent objects,detect stress in Rough and Polished Diamonds | ||||||||||
