Micro Mini Solitaire Scope (S-508)
Micro Mini Solitaire Scope(S-508)
After developing the finest quality diamond analysing and sorting machines for the diamond and gemstone industry, Vision 360 has introduced the most convenient and portable product in our range of products – Micro Mini.
With more competence, this newest inclusion is not only portable but also is developed to resolve two major unique problems. This machine is designed to include all the features of a small diascope and advanced solitaire microscope.

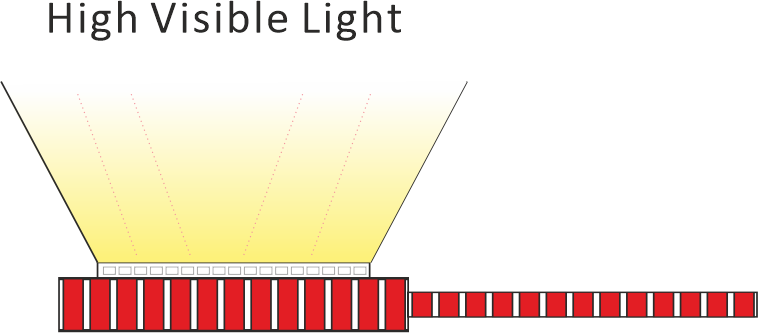

Illumination Technology
The incision of new illumination technology and lighting mechanism mainly focuses to impart the best clarity and analysis of gemstones. The microscope strictly confines the object field from other lights; thus, allowing the analyst to study the characteristics of the diamond meticulously and distinctively.

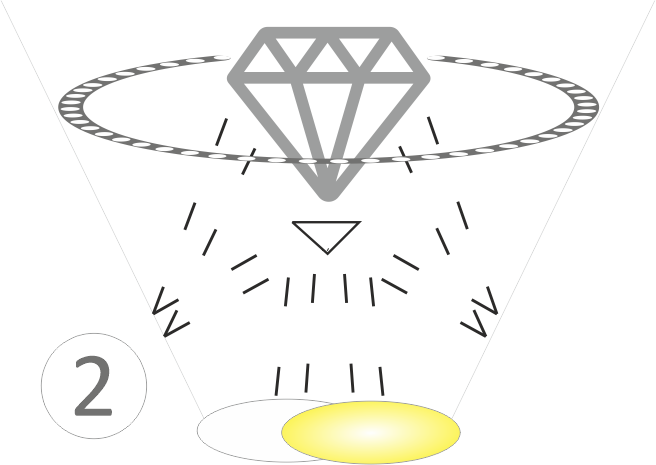

Darkfield Illumination
The visibility of inclusion and polishing is clearer in darkfield comparatively. It is easy to find even the minute part FL inclusion in the diamond.
With the consolidation of both yellow (3000K) and white (6500K) lights, the analyst can make faster decisions and find the inclusion very easily. With control on the darkfield illumination, the user can even view the minute part of inclusion.
One can tune the yellow and white illumination range between 3000K to 6500K and also save the references for the future. It also gives the option to switch darkfield (yellow+ White) & ring illumination; as a result the user can discover three reference views of the specimen.
Add- On Attachments

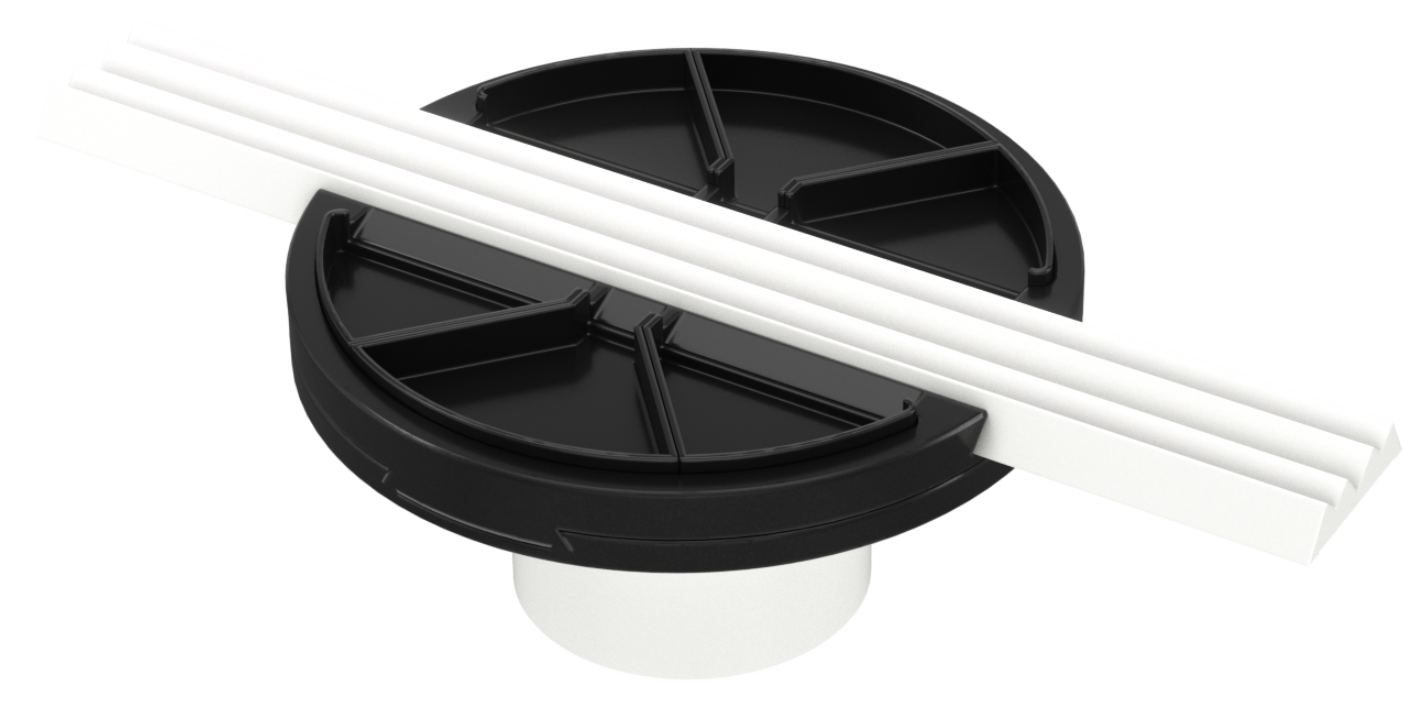

Small Dia Sorting 9 Bin Tray
The device is designed especially for small diamonds, the trays in this device are designed uniquely so that the diamond used for sorting can fit easily into the curate, and a new bin is attached to check the quality and clarity of the diamond.

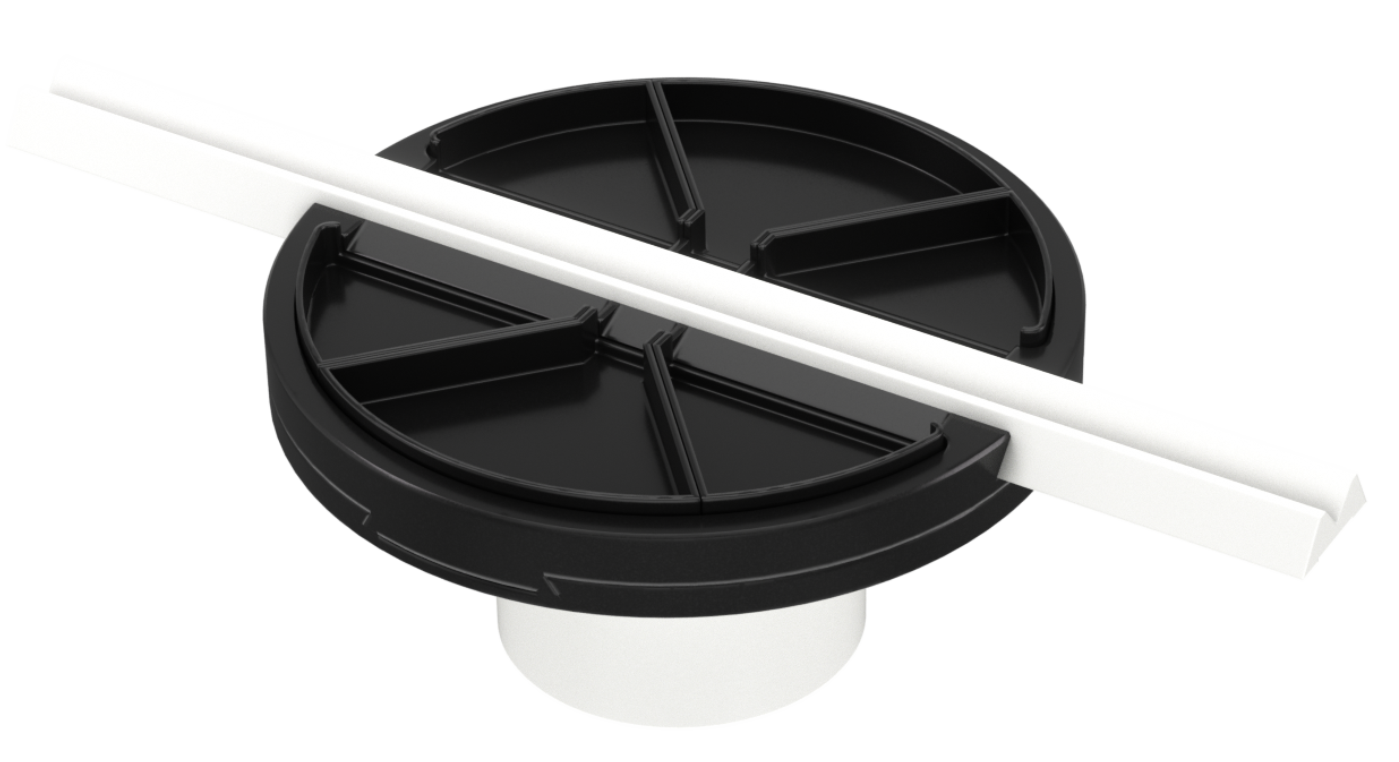

Small dia sorting 7 bin tray
Designed for the user’s convenience, the 7 bin tray helps analyse and sort the diamond in seven different methods.
Tilting Stand (25/50/75)
With the help of the tilting stand, the designs and angles can be easily analysed. Designed to minimize discomfort, the tilting stand helps in comfortable usage and thus making it more convenient.

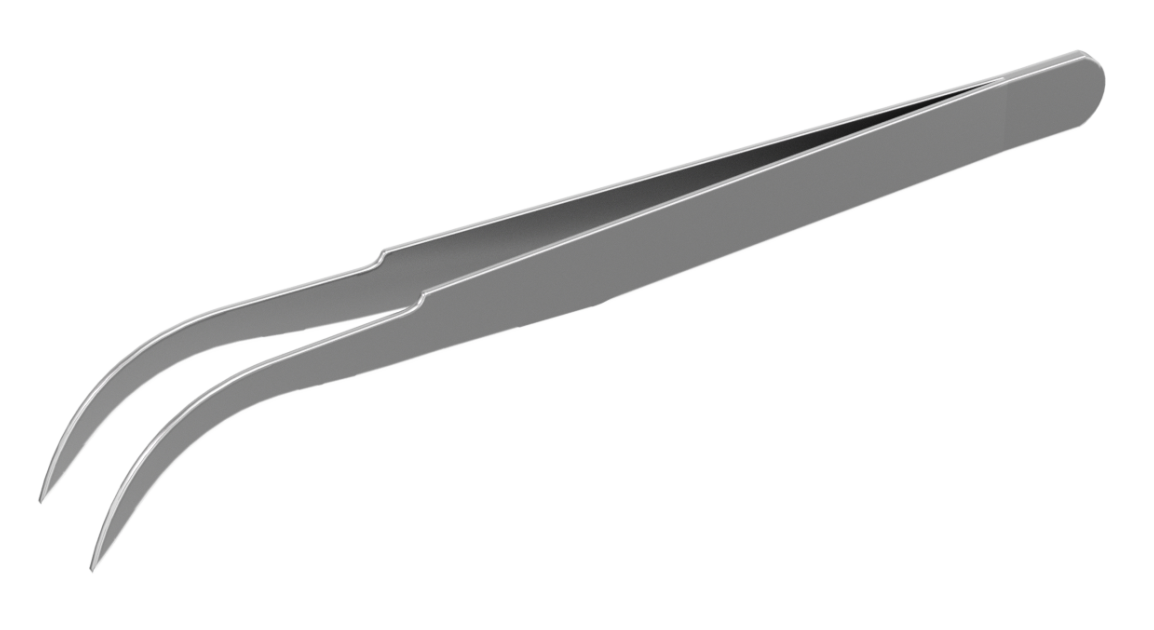

Small Diascope Tweezers
Designed with European technology, the small diascope tweezer helps in easy assorting and gripping while analysing the diamond.

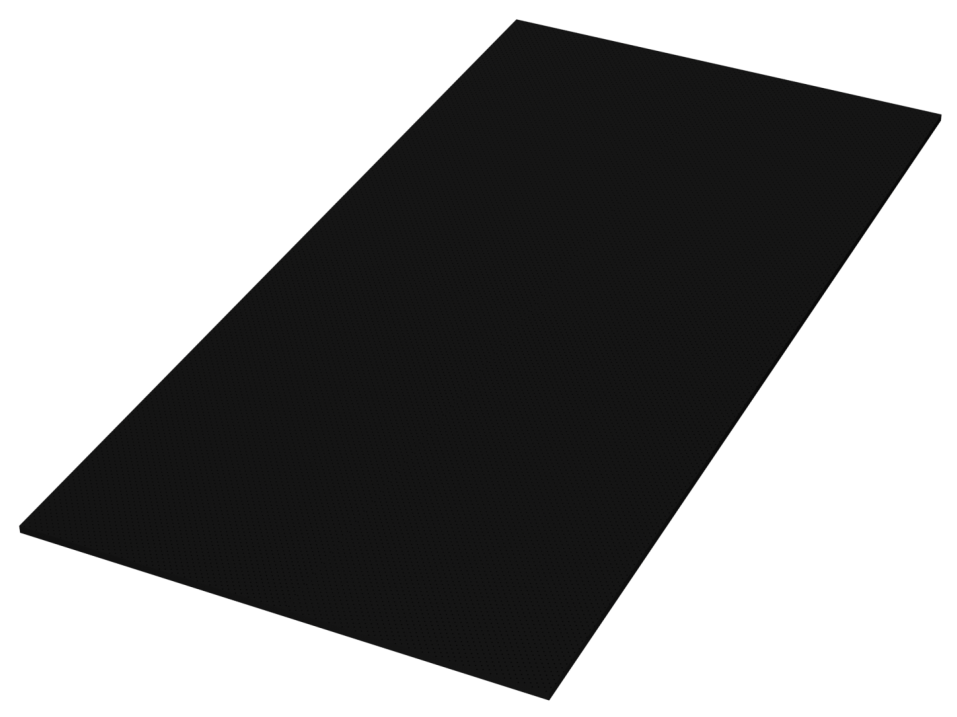

Micro Mini Base Grip Pads
These uniquely designed pads are used for the extra gripping of the microscope which can tilt in the long run.
Wrist Comfort Pads
Wrist comfort pads are composed for a comfortable hand resting position while analysing and sorting the diamond.
Optics
When it is about a microscope, lenses are one of the most essential parts of it. At Vision 360, as we never settle for anything else than the best quality and consistency, we develop instruments made with the highest quality and state-of-the-art technology. And for this, we have been associated with the most leading optic lens manufacturer Zeiss. With an association of more than a decade with this forerunner brand, for us, it is these a ributes that always can make success. And therefore, we strive to give our best to clients. We develop instruments made with the highest quality and state-of-the-art technology.
We have always been a step ahead when it's all about technology. With the introduction of Greenough-type stereo microscope by Zeiss, Vision 360 procured it as we believe in walking with the technology. The Greenough-type stereo microscope gives you crisp 3D impressions, adaptable object illumination, and effortless sharing of images whenever one wishes. This microscope is useful for easy specimen handling and large to view the field. Solid, maintainable and easy to use, this specimen is perfect for the analysis of diamond and gemstone.
Important Features

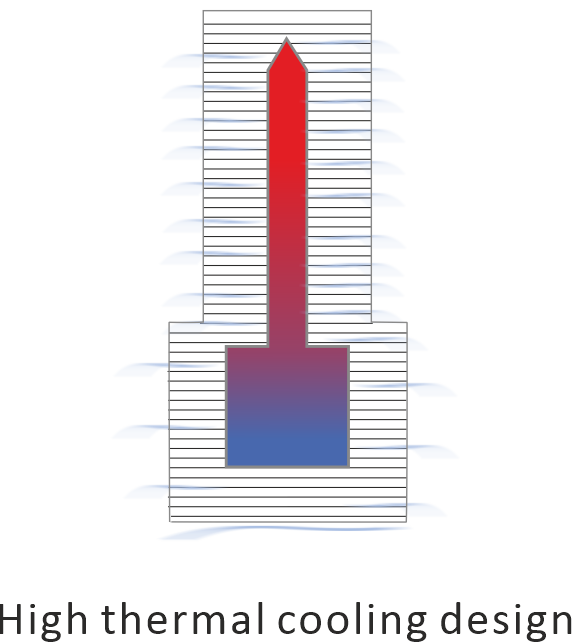

THERMAL COOLING TECHNOLOGY
With the incorporation of the air blowing and thermalcooling technology, the heat generated can be reduced which helps in the durability of the machines.
EASY SORTING
To sort the single diamond or to check the clarity grades of the diamonds, the add-on modules of the advanced solitaire microscope are included in it.
INCREASING PRODUCTIVITY, LESS EYE STRAIN
With the help of a vacuum stick, the clarity of diamond between 3000K to 6500K can be produced; increasing the productivity of the analyst and lessening the strain on eyes.
USER FRIENDLY
This ergonomically designed machine is also user friendly and portable.
PERFECT ACCURACY
As it is easily transportable, the buyers can carry it with them anywhere to check the clarity and accuracy of the diamonds.
FLICKER FREE
We have designed the Micro Mini with a smooth direct current that can avoid flickering while analyzing the diamond.
MODULAR DESIGN
The 2-in-1 modular microscope is designed to coalesce the unique features of darkfield attachment and small diascope.

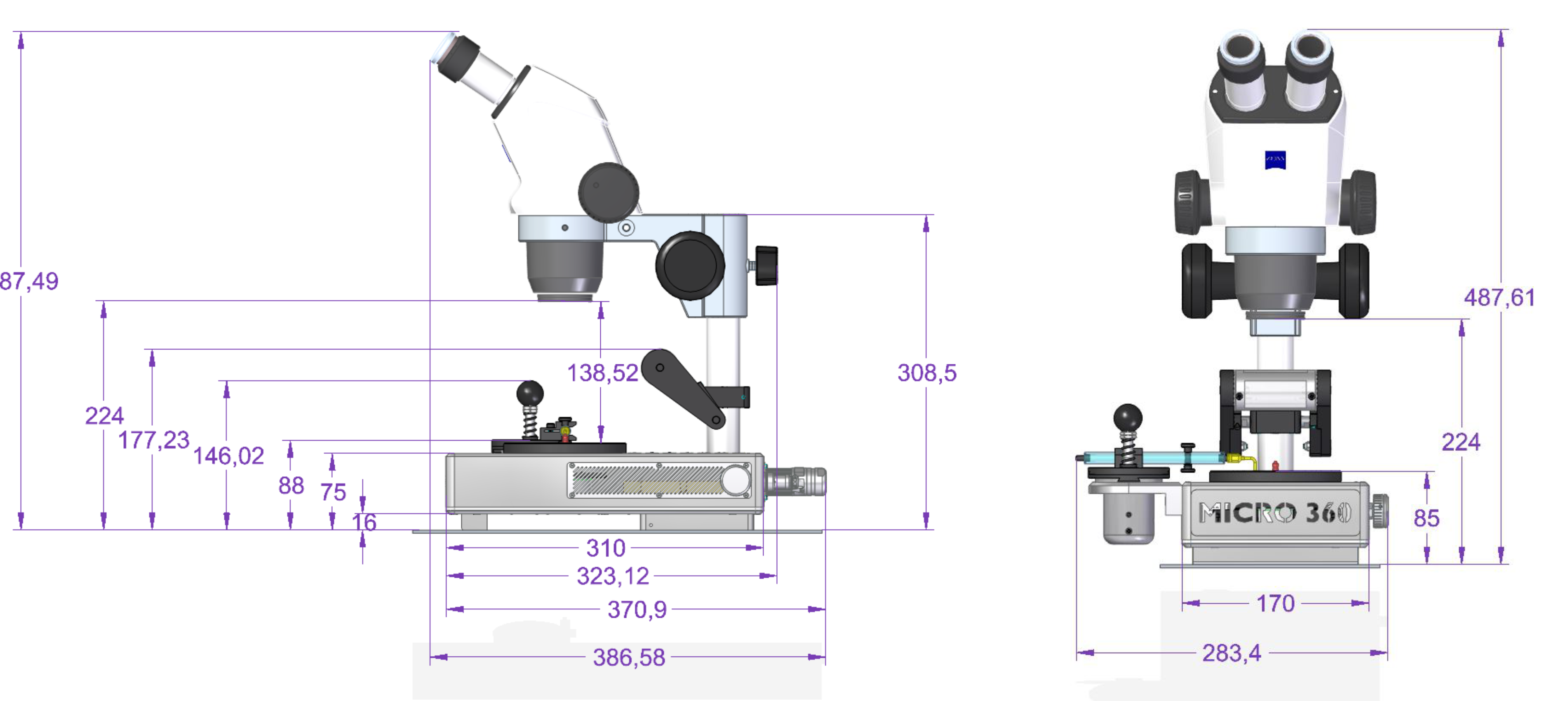

Technical Specification
Lens Comparison Table
Inter Comparison of Carl Zeiss Stereo Microscopes
| Specification | Zeiss | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Stemi 305 | Stemi 508 | Discovery V8 | Discovery V20 | ||||||||||
| Optical Concept | Greenough | Greenough | Parallel Optics | Parallel Optics | |||||||||
| Zoom Range | 5:1 | 8:1 | 8:1 | 20:1 | |||||||||
| Zoom Operation | Manual | Manual | Manual | Motorized | |||||||||
| Total Magnification with 1x Objectives and 10x eyepieces | 8x to 40x | 6.3x to 50x | 10x to 80x | 7.5x to 150x | |||||||||
| Resolution(lp/mm) | 200 | 220 | 346 | 796 | |||||||||
| Working distance with 1x Objective | 110mm | 92mm | 81mm with Plan S1x Objective | 81mm with Plan Apo S0.63x Objective | |||||||||
| Binocular tubes | Integrated | Integrated | Various Binocular/trinocular tubes are available | 81mm with Plan Apo S0.63x Objective | |||||||||
| Interpupillary Distance | 55-75mm | 55-75mm | 55-75mm | 55-75mm | |||||||||
| Eyepieces | 10X | 10X | 10X,16X,25X | 10X,16X,25X | |||||||||
| Field of View Number | N/A | 20 | 21,23,16,10 | 21,23,16,10 | |||||||||
| Object field(mm) | 28.8...5 | 36.8...4.6 | 23.0...2.9 | 23.0...2.9 | |||||||||
| Accessories: | |||||||||||||
| Camera | Yes | Yes | Yes | Yes | |||||||||
| Fluorescence attachment | No | No | Yes | Yes | |||||||||
Inter Comparison of Carl Zeiss Stereo Microscopes
| General Information(305) | General Information(508) | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Operation Concept | Stereo microscope,Greenough design with 5:1 zoom range | Stereo microscope,Greenough design with 8:1 zoom range | |||||||||||||||
| Main Component | Lens body,Stand and Illumination | Lens body,Stand and Illumination | |||||||||||||||
| Lens body | Stemi 305(binocular, incl.eyepieces 10x/23 Br. foc),Stemi 305 doc(Phototube, incl.eyepieces 10x/23 Br. foc) | Stemi 508(binocular, incl.eyepieces 10x/23 Br. foc),Stemi 508 doc(Phototube, incl.eyepieces 10x/23 Br. foc) | |||||||||||||||
| Stands | Ergonomic design with adjustable in height and inclination for longer use | Ergonomic design with adjustable in height and inclination for longer use | |||||||||||||||
| Input Power Supply | 110 - 240 Volt AC,60/50 Hz | 110 - 240 Volt AC,60/50 Hz | |||||||||||||||
| Optical data of the Basic and Optional System | |||||||||||||||||
| Magnification Range | 8x to 40x with basic version(10x eyepieces,no front optics)all magnifications from 4x to 200x (interchanable optics) | 6.3x to 50x with basic version(10x eyepieces,no front optics)all magnifications from 2x to 250x (interchanable optics) | |||||||||||||||
| Maximum Resolution | 200lp/mm basic version:up to 400lp/mm with interchanable optics | 225lp/mm basic version:up to 450lp/mm with interchanable optics | |||||||||||||||
| Maximum object field | 29 mm basic version;up to 58 mm using interchanable | 36 mm basic version;up to 122 mm using interchanable | |||||||||||||||
| Working distance | 110 mm basic version;up to 58 mm using interchanable optics | 92 mm basic version;up to 122 mm using interchanable optics | |||||||||||||||
| Stand | |||||||||||||||||
| Body | Light weighted aluminium body | ||||||||||||||||
| Focusing | Manual coarse adjustment with Tilting arm | ||||||||||||||||
| Illumination | |||||||||||||||||
| Dark-field illumination | Light weighted aluminium body | ||||||||||||||||
General Information
| Operation Concept | Stereo microscope,Greenough design with 8:1 zoom range | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Main Component | Lens body,Stand and Illumination | ||||||||||
| Lens body | Stemi 305(binocular, incl.eyepieces 10x/23 Br. foc),Stemi 305 doc(Phototube, incl.eyepieces 10x/23 Br. foc) | ||||||||||
| Stands | Ergonomic design with adjustable in height and inclination for longer use | ||||||||||
| Illumination | Three in one Option is available,which are Dark-field(Y&W),Ring type(W) and Combination of both (Y + W) with standard daylight | ||||||||||
| Input Power Supply | 110 - 230 Volt AC,60/50 Hz | ||||||||||
| Optical data of the Basic and Optional System | |||||||||||
| Magnification Range | 6.3x to 50x with basic version(10x eyepieces,no front optics)all magnifications from 2x to 250x (interchanable optics) | ||||||||||
| Maximum Resolution | 225lp/mm basic version:up to 450lp/mm with interchanable optics | ||||||||||
| Maximum object field | 36 mm basic version;up to 122 mm using interchanable | ||||||||||
| Working distance | 92 mm basic version;up to 122 mm using interchanable optics | ||||||||||
| Stand | |||||||||||
| Body | Aluminium and Brass body with anodising coating | ||||||||||
| Focusing | Manual coarse adjustment with Tilting arm | ||||||||||
| Illumination | |||||||||||
| Dark-Field illumination | LED based Lighting to see diamond structures bright against a dark background | ||||||||||
| Ring illumination | shadow-free bright LEDs in ring illumination for stereo effect. | ||||||||||
| Combine lighting | Combination of LED based Dark-Field and bright LEDs in ring illuminator | ||||||||||
| Overhead Day Light | Look at colored objects and giving soft light to observe glary or shining objects | ||||||||||
| Overhead Fluorescence | Observe the fluorescence of the diamond in the relief contrast | ||||||||||
| Polarization Add-On | Study birefringent objects,detect stress in Rough and Polished Diamonds | ||||||||||
